Product Summary
The MC145572FN is a high performance, quad 2-input NOR gate operating from a 2.3 to 3.6 V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5 V allows MC145572FN inputs to be safely driven from 5 V devices. Current drive capability is 24 mA at the outputs.
Parametrics
MC145572FN absolute maximum ratings: (1)VCC, DC Supply Voltage: -0.5 to +7.0 V; (2)VI, DC Input Voltage: -0.5 ≤ VI ≤ +7.0 V; (3)VO, DC Output Voltage: -0.5 ≤ VO ≤ VCC + 0.5V when Output in HIGH or LOW State; (4)IIK, DC Input Diode Current: -50mA when VI < GND; (5)IOK, DC Output Diode Current: -50mA when VO < GND; +50mA when VO > VCC; (6)IO, DC Output Source/Sink Current: ±50 mA; (7)ICC, DC Supply Current Per Supply Pin: ±100 mA; (8)IGND, DC Ground Current Per Ground Pin: ±100 mA; (9)TSTG, Storage Temperature Range: -65 to +150℃.
Features
MC145572FN features: (1)Designed for 2.3 V to 3.6 V VCC Operation; (2)5 V Tolerant Inputs - Interface Capability With 5 V TTL Logic; (3)LVTTL Compatible; (4)LVCMOS Compatible; (5)24 mA Balanced Output Sink and Source Capability; (6)Near Zero Static Supply Current (10μA) Substantially Reduces System Power Requirements; (7)Latchup Performance Exceeds 500 mA; (8)ESD Performance: Human Body Model >2000 V; Machine Model >200 V.

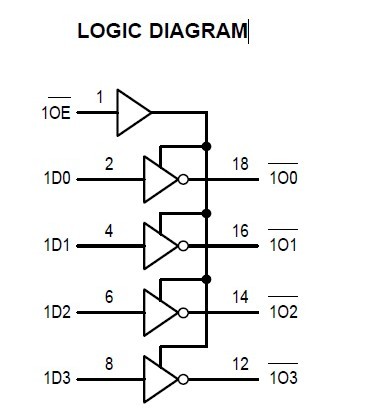

Diagrams
 |
