Product Summary
The AM27C010-120DC is a 1 Megabit, ultraviolet erasable programmable read-only memory. It is organized as 128K words by 8 bits per word, operates from a single +5 V supply, has a static standby mode, and features fast single address location programming. The AM27C010-120DC is available in windowed ceramic DIP packages, as well as plastic one time programmable (OTP) PDIP and PLCC packages.
Parametrics
AM27C010-120DC absolute maximum ratings: (1)Storage Temperature: –65 to +125℃; (2)Ambient Temperature with Power Applied: –55 to +125℃; (3)Voltage with Respect to VSS, All pins except A9, VPP , VCC: –0.6 V to VCC + 0.6 V; A9 and VPP: –0.6 V to 13.5 V; VCC: –0.6 V to 7.0 V.
Features
AM27C010-120DC features: (1)Fast access time Speed options as fast as 45 ns; (2)Low power consumption 20 μA typical CMOS standby current; (3)JEDEC-approved pinout; (4)Single +5 V power supply; (5)±10% power supply tolerance standard; (6)100% Flashrite programming Typical programming time of 16 seconds; (7)Latch-up protected to 100 mA from –1 V to VCC + 1 V; (8)High noise immunity; (9)Versatile features for simple interfacing Both CMOS and TTL input/output compatibility; Two line control functions; (10)Standard 28-pin DIP, PDIP, and 32-pin PLCC packages.

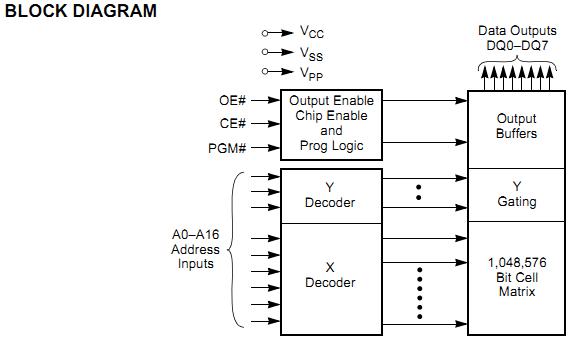

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AM27C010-120DC |
AMD |
IC EPROM 1 MEG 120NS 32 CDIP |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
AM27×020 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
AM2729-110 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
AM2729-125 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
AM27A03 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
Am27C010 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
AM27C010-120DC |
AMD |
IC EPROM 1 MEG 120NS 32 CDIP |
Data Sheet |
Negotiable |
|
||||
