Product Summary

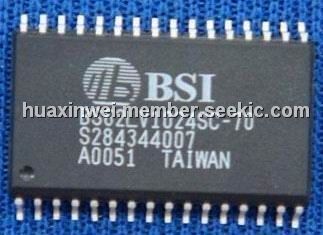

The BS62LV1024SC-70 is a high performance, very low power CMOS Static Random Access Memory organized as 131,072 words by 8 bits and operates from a wide range of 2.4V to 5.5V supply voltage. Advanced CMOS technology and circuit techniques provide both high speed and low power features with a typical CMOS standby current of 0.02μA and maximum access time of 70ns in 3V operation.
Parametrics
BS62LV1024SC-70 absolute maximum ratings: (1)Terminal Voltage with Respect to GND: -0.5 to Vcc+0.5 V; (2)Temperature Under Bias: -40 to +125 ℃; (3)Storage Temperature: -60 to +150 ℃; (4)Power Dissipation: 1.0 W; (5)DC Output Current: 20 mA.
Features
BS62LV1024SC-70 features: (1)Wide Vcc operation voltage : 2.4V to 5.5V; (2)Very low power consumption :Vcc = 3.0V, C-grade : 20mA (Max.)operating current, I- grade : 25mA (Max.) operating current,; (3)0.02uA (Typ.) CMOS standby current; (4)High speed access time : 70ns (Max.) at Vcc = 3.0V; (5)Automatic power down when chip is deselected; (6)Three state outputs and TTL compatible; (7)Fully static operation; (8)Data retention supply voltage as low as 1.5V; (9)Easy expansion with CE2, CE1, and OE options.
Diagrams
 |
