Product Summary
The E3S-GS1E4 is a Grooved Head Sensor with Built-in DC Amplifiers.
Parametrics
E3S-GS1E4 absolute maximum ratings: (1)Power supply voltage: 12 to 24 VDC, ripple (p-p): 10% max; (2)Current consumption: 40 mA max; (3)Sensing distance: 1 cm 3 cm; (4)Standard objects: Transparent (2 x 3 mm) Opaque and translucent (3 mm); (5)Response time (ON, OFF): 1 ms max.; (6)Sensitivity Adjustable: 10-cycle trimmer Adjustable; (7)Operation mode: Wire-selectable (Refer to Output Circuit); (8)Ambient temperature Operating: –25 to 55℃.
Features
E3S-GS1E4 features: (1)A 1-cm groove type detects marks on transparent film; (2)A 3-cm groove type detects edges, labels, and marks; (3)LIGHT and STABILITY indicators make sensitivity adjustment easy.

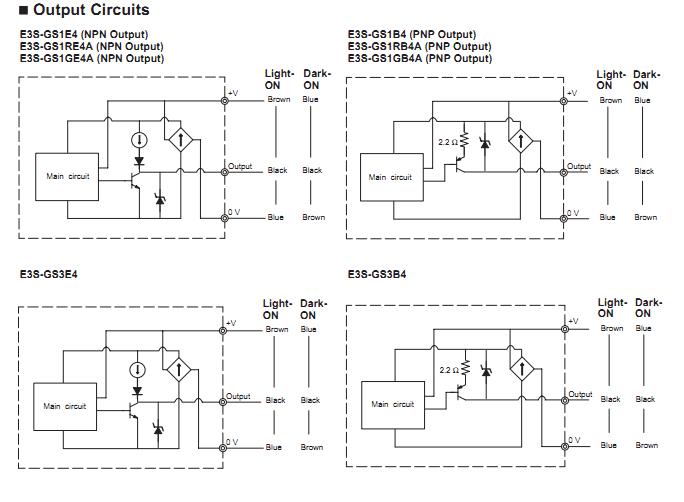

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 E3S-GS1E4 |
Omron Industrial |
Photoelectric Sensors PHOTOELECTRIC SENSOR |
Data Sheet |
Negotiable |
|
||||||||||||
 |
E3S-GS1E4 5M |
Omron Industrial |
Photoelectric Sensors 5m SLOT SENSOR |
Data Sheet |
|
|
||||||||||||
