Product Summary
The DS92LV1210TMSA is a 10 Bit Bus LVDS Serializer. It transforms a 10-bit wide parallel CMOS/TTL data bus into a single high speed Bus LVDS serial data stream with embedded clock. The DS92LV1210TMSA may transmit data over heavily loaded backplanes or 10 meters of cable. The reduced cable, PCB trace count and connector size saves cost and makes PCB design layout easier. The Serializer has a synchronization mode that should be activated upon power-up of the device. The DS92LV1210TMSA output pins may be TRI-STATE to achieve a high impedance state. The PLL can lock to frequencies between 16 MHz and 40 MHz.
Parametrics
DS92LV1210TMSA absolute maximum ratings: (1)Supply Voltage (VCC):-0.3V to +4V; (2)CMOS/TTL Input Voltage:-0.3V to (VCC +0.3V); (3)CMOS/TTL Output Voltage:-0.3V to (VCC +0.3V); (4)Bus LVDS Receiver Input Voltage:-0.3V to +3.9V; (5)Bus LVDS Driver Output Voltage:-0.3V to +3.9V; (6)Bus LVDS Output Short Circuit Duration:Continuous; (7)Junction Temperature:+150℃.
Features
DS92LV1210TMSA features: (1)Guaranteed transitioevery data transfer cycle; (2)Single differential pair eliminates multi-channel skew; (3)Flow-through pinout for easy PCB layout; (4)400 Mbps serial Bus LVDS bandwidth (at 40 MHz clock); (5)10-bit parallel interface for 1 byte data plus 2 control bits; (6)Synchronizatiomode and LOCK indicator; (7)Programmable edge trigger oclock; (8)High impedance oreceiver inputs whepower is off; (9)Bus LVDS serial output rated for 27Ω load; (10)Small 28-lead SSOP package-MSA.

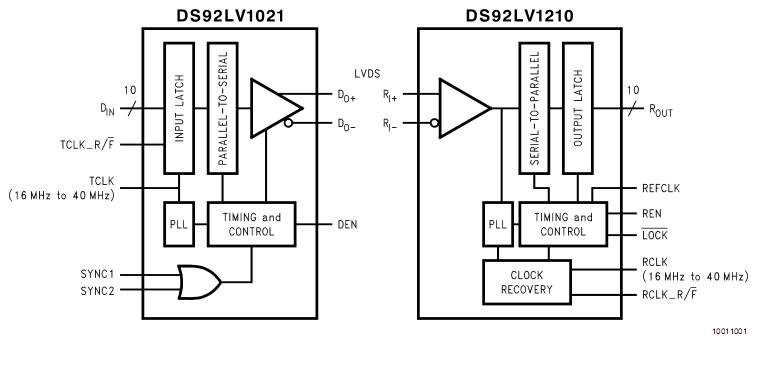

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS92LV1210TMSA/NOPB |
|
IC DESERIALIZER 10-BIT 28-SSOP |
Data Sheet |
Negotiable |
|
||||
|
DS92LV1210TMSAX |
|
IC DESERIALIZER 10BIT 28-SSOP |
Data Sheet |
Negotiable |
|
||||
