Product Summary

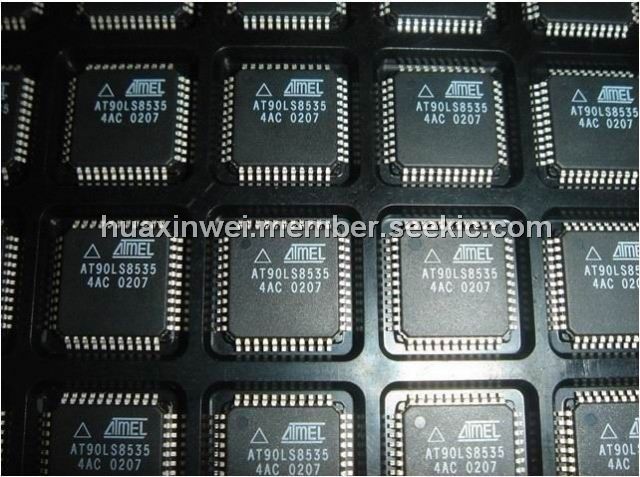

The AT90LS8535-4AC is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture. By executing powerful instructions in a single clock cycle, the AT90LS8535-4AC achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
AT90LS8535-4AC absolute maximum ratings: (1)Operating Temperature: -40℃ to +105℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin except RESET; (4)with Respect to Ground: -1.0V to VCC + 0.5V; (5)Voltage on RESET with Respect to Ground: -1.0V to +13.0V; (6)Maximum Operating Voltage: 6.6V; (7)I/O Pin Maximum Current: 40.0 mA; (8)Maximum Current VCC and GND (PDIP package): 200.0 mA; (9)Maximum Current VCC and GND (TQFP, PLCC package): 400.0 mA.
Features
AT90LS8535-4AC features: (1)High-performance and Low-power RISC Architecture; (2)Data and Nonvolatile Program Memories; (3)8-channel, 10-bit ADC; (4)Special Microcontroller Features; (5)Power Consumption at 4 MHz, 3V, 20℃; (6)32 Programmable I/O Lines; (7)40-lead PDIP, 44-lead PLCC, 44-lead TQFP, and 44-pad MLF.

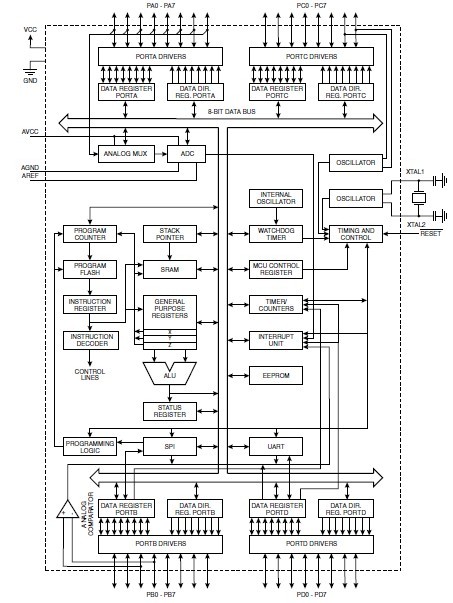

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT90LS8535-4AC |
Atmel |
8-bit Microcontrollers (MCU) 8K Flash 3V |
Data Sheet |
Negotiable |
|
||||
