Product Summary

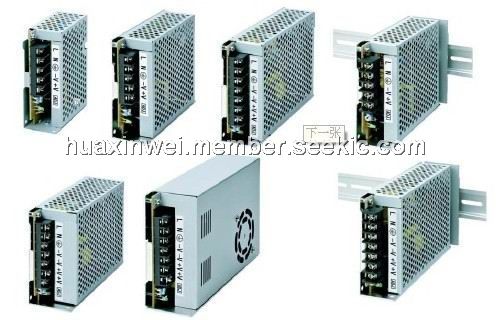

The S8JC-Z15024C is an Economical Power Supply.
Parametrics
S8JC-Z15024C absolute maximum ratings: (1)Output voltage (VDC): 5 V; (2)Output current: 3.0 A; (3)Voltage adjustment range (typical): -10% to 10%; (4)Ripple (typical): 100 mV; (5)Startup time (typical): 300 ms; (6)Hold time (typical): 50 ms; (7)Efficiency (typical): 74%; (8)Voltage: 200 to 240 VAC (185 to 264 VAC); (9)Frequency: 50/60 Hz (47 to 63 Hz); (10)Current (typical): 0.22 A; (11)Leakage current: 1 mA max; (12)Inrush current (for a cold start at 25) (typical): 40 A; (13)Overload protection: 105% of rated load current, voltage drop, intermittent, automatic reset.
Features
S8JC-Z15024C features: (1)Mount to DIN Rails for models with ratings of 15 to 350 W; (2)Protection against overcurrents and overvoltages.

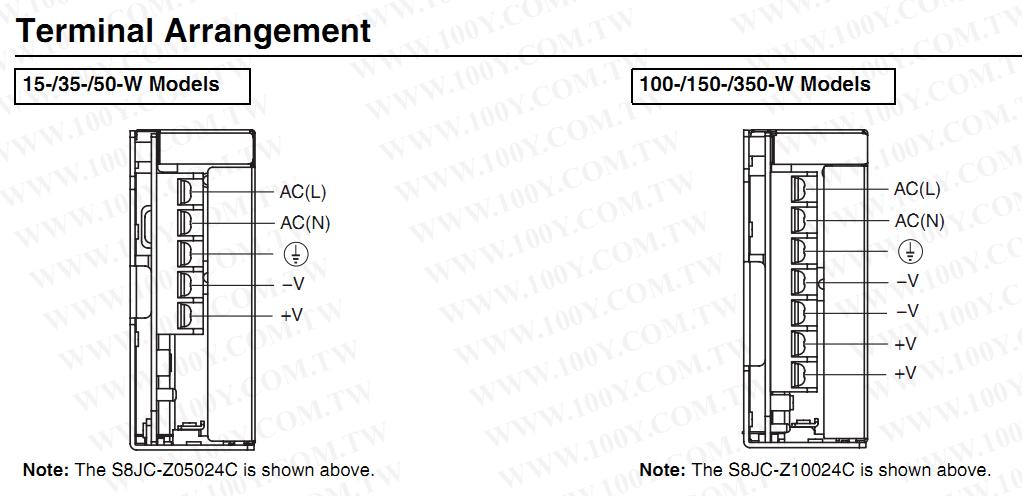

Diagrams
