DS92LV1021TMSA

SSOP-28, wide parallel CMOS/TTL, 10 Bit Bus LVDS Serializer, Programmable edge trigger oclock

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.70~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.70~1.00

PartNumber:: DS92LV1021TMSA

Brand:: National Semiconductor - NS | Pack: SSOP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. xiao's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-07

From Other Seller

Part Number:DS92LV1021TMSA
US $0.70 - 1.00
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
MJ16018

US $1.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

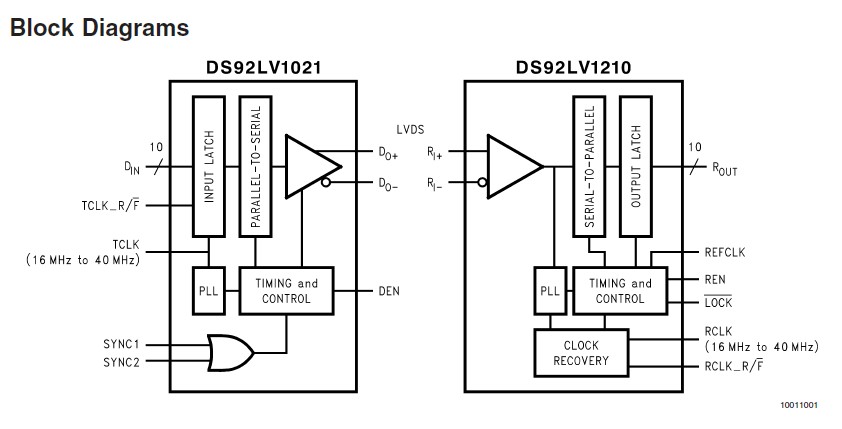

The DS92LV1021TMSA is a 10 Bit Bus LVDS Serializer. It transforms a 10-bit wide parallel CMOS/TTL data bus into a single high speed Bus LVDS serial data stream with embedded clock. The DS92LV1021TMSA may transmit data over heavily loaded backplanes or 10 meters of cable. The reduced cable, PCB trace count and connector size saves cost and makes PCB design layout easier. The Serializer has a synchronization mode that should be activated upon power-up of the device. The DS92LV1021TMSA output pins may be TRI-STATE to achieve a high impedance state. The PLL can lock to frequencies between 16 MHz and 40 MHz.

Parametrics

DS92LV1021TMSA absolute maximum ratings: (1)Supply Voltage (VCC):-0.3V to +4V; (2)CMOS/TTL Input Voltage:-0.3V to (VCC +0.3V); (3)CMOS/TTL Output Voltage:-0.3V to (VCC +0.3V); (4)Bus LVDS Receiver Input Voltage:-0.3V to +3.9V; (5)Bus LVDS Driver Output Voltage:-0.3V to +3.9V; (6)Bus LVDS Output Short Circuit Duration:Continuous; (7)Junction Temperature:+150℃.

Features

DS92LV1021TMSA features: (1)Guaranteed transitioevery data transfer cycle; (2)Single differential pair eliminates multi-channel skew; (3)Flow-through pinout for easy PCB layout; (4)400 Mbps serial Bus LVDS bandwidth (at 40 MHz clock); (5)10-bit parallel interface for 1 byte data plus 2 control bits; (6)Synchronizatiomode and LOCK indicator; (7)Programmable edge trigger oclock; (8)High impedance oreceiver inputs whepower is off; (9)Bus LVDS serial output rated for 27Ω load; (10)Small 28-lead SSOP package-MSA.
