Product Summary

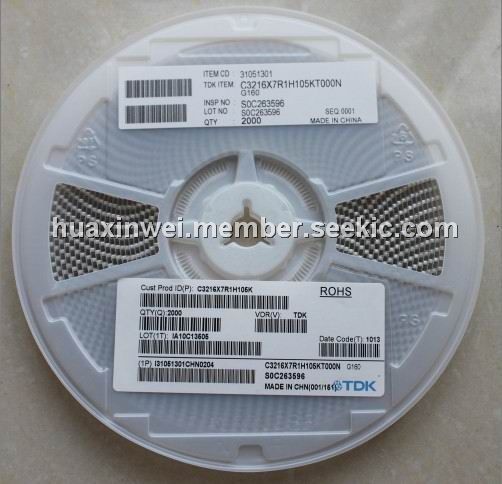

The C3216X7R1H105KT000N is a Ceramic Capacitor For Mid Voltage SMD.

Parametrics

C3216X7R1H105KT000N absolute maximum ratings: (1)capacitance change: ±15%; (2)temperature range: -55 to 125℃; (3)capacitance tolerance: ±10%.

Features

C3216X7R1H105KT000N features: (1)The unique design structure for mid voltage enables a compact size with high voltage resistance; (2)Rated voltage Edc: 100, 250 and 630V; (3)C3225, C4532 and C5750 types are specific to reflow soldering.

Diagrams

C3216X7R1H105KT000N shapes and dimensions
