Product Summary
The LMC7211BIMX is a micropower CMOS comparator available in the space saving SOT23-5 package. This makes the comparator ideal for space and weight critical designs. The device is supplied in two offset voltage grades, 5 mV and 15 mV. The rail-to-rail input voltage makes the LMC7211BIMX a good choice for sensor interfacing, such as light detector circuits, optical and magnetic sensors, and alarm and status circuits. The applications of the LMC7211BIMX include: Battery Powered Products, Notebooks and PDAs, PCMCIA cards, Mobile Communications, Alarm and Security circuits, Direct Sensor Interface, Replaces amplifiers used as comparators with better performance and lower current.
Parametrics
LMC7211BIMX absolute maximum ratings: (1)ESD Tolerance: 2 kV; (2)Differential Input Voltage: (VCC) +0.3V to (-VCC)-0.3V; (3)Voltage at Input/Output Pin: (VCC) + 0.3V to (-VCC)-0.3V; (4)Supply Voltage (V+–V-): 16V; (5)Current at Input Pin: ±5 mA; (6)Current at Output Pin: ±30 mA; (7)Current at Power Supply Pin: 40 mA; (8)Lead Temperature(soldering, 10 sec): 260℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Junction Temperature: 150℃.
Features
LMC7211BIMX features: (1)Tiny SOT 23-5 package saves space; (2)Package is less than 1.43 mm thick; (3)Guaranteed specs at 2.7V, 5V, 15V supplies; (4)Typical supply current 7 μA at 5V; (5)Response time of 4 μs at 5V; (6)LMC7211—push-pull output; (7)Input common-mode range beyond V- and V+; (8)Low input current.

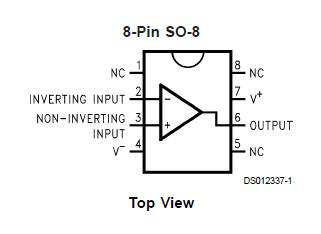

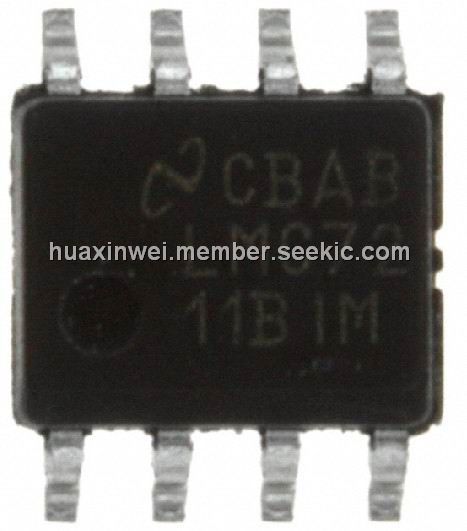

Diagrams
